Formulation Equipments UPE

We Provide All Aspects Of Pharmaceutical, Cosmetic and Healthcare products sector!

We believe in the best quality products with the sensible rate. Our products are preferred for their competence and long-lasting performance.

...

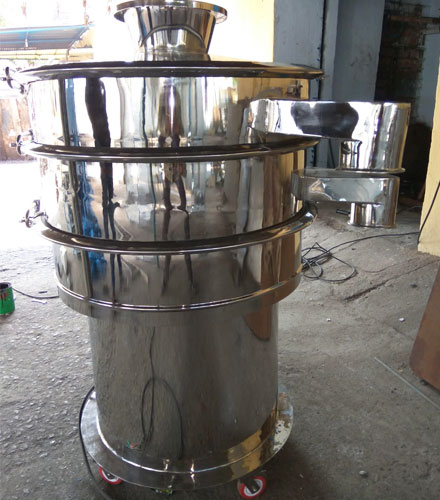

Vibro Sifter

Features

  • Characteristic and screen type
  • Design for high speed & dust free sieving
  • Vibro shifter maintenance free machine
  • All contact part consumption compared to reciprocation vibratory system
  • Low power consumption compared to reciprocation vibratory system
  • Easy dismantling and cleaning of contact part
  • Machine available with flame proof and double / triple deck option

Technical Specifications

  • Model :- Vibro Sifter
  • Screen Día :- 503 mm - 752 mm - 914 mm
  • Cap In Kgs :- 20 to 200 kgs - 30 to 300 kgs - 30 to 325kgs
  • Cap Dia In Lids :- 1200mm without lid - 1250mm without lid - 1505mm without lid
  • Día :- 220 mm - 670mm
  • Hp & RPM :- 1.2Hp - 1440 RPM 3ph.
  • M.O.C :- Stainless
  • Designed Type :- Customized
...

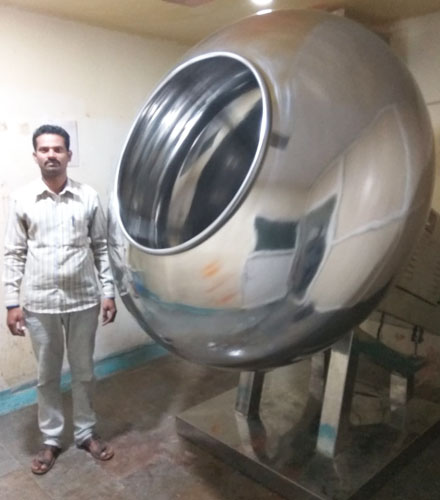

Coating Pan

Features

  • Coating fan is modified to the perfection from SS 304 (SS 316 optional)
  • Totally enclosed machine drive and hot air blowing system
  • 300,360,420or480,coating machine has variable drive, hot air blowing system is separate
  • 600,720, coating machine has two speed with step pulley without hot air blowing system
  • Low power consumption compared to reciprocation vibratory system
  • Hot air blowing system is with temperatures control probe

Technical Specifications

  • Model :- Coating Pan
  • Size :- 12-18-30-36-42-48-60-72
  • L.C.I.Ltrs :- 15-25-45-75-125-185-300-550
  • M.E.M :- 0.5-0.5-1.0-1.0-2.0-2.0-5.0-7.5
  • Blower Ph :- .0.5-0.5-1.0-1.0-1.0-1.0-2.0-2.0
  • H.C.I.Kw :- 1.0-1.0-3.0-3.0-3.0-3.0-5.0-5.0
  • M.O.C :- Stainless
  • Designed Type :- Customized
...

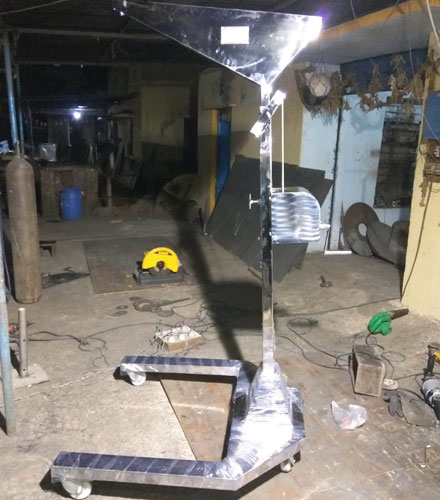

Homozoniger

Features

  • 1 HP to 10 HP
  • Built on fix stand or available with tank / vessel
  • CGMP design
  • Low or high motor available with variable speed
  • Higher speed change & connstant torque with precisecontrol
  • Maintenance and spark free AC induction motor

Technical Specifications

  • Model :- Homozoniger
  • Speed Range in RPM :- 30-1440
  • Electric Supply :- 230v,50hz single phase
  • Overload protection :- Automatic cut off with manual restrat
  • Motor protection class :- IP 44
  • M.O.C :- Stainless
  • Designed Type :- Customized
...

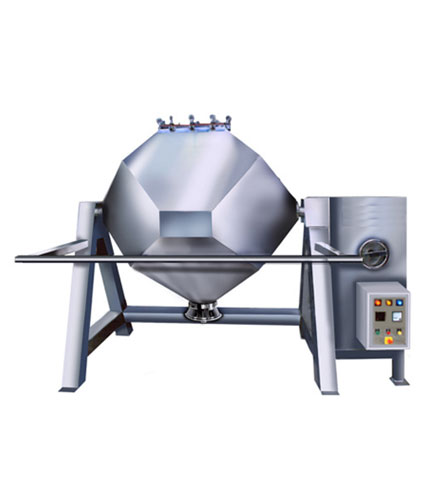

Polygon Blender

Features

  • Suitable for dry mixing of products in granule form
  • Easy for loading & unloading of material
  • Easy for cleaning
  • All contact parts are made out of SS 316 / SS 316 L quality materiel as per customer requirements
  • Blenders range include polygonal / ribbon blender
  • Simple design requires minimum maintenance
  • All moving components are guarded suitably
  • Manual rotating facility with hand wheel for inching
  • Control panel displays the time of run & RPM of the blender & AMPS taken by the blender

Technical Specifications

  • Model :- Polygon Blender
  • Gross Capacity :- 100L, 200L, 300L, 600L, 750L, 1000L, 1500L, 2000L, 3000L, 4000L
  • Working Capacity :- 25-50, 50-100, 75-120, 150-250, 190-300,
    250-400, 375-600, 500-800, 750-1200, 1000-1600
  • Motor HP :- 2 , 2, 3, 5, 5, 7.5, 7.5, 10, 15, 15
  • M.O.C :- Stainless
  • Gear Box :- 6/12, 6/12, 6/12, 6/12,6/12,6/12,6/12, variable,variable,variable
  • RPM :- W.C depends on products bulk density
    (2) .5 bulk density considered for W.C (3) will be provided as per customer specification
  • Designed Type :- Customized
...

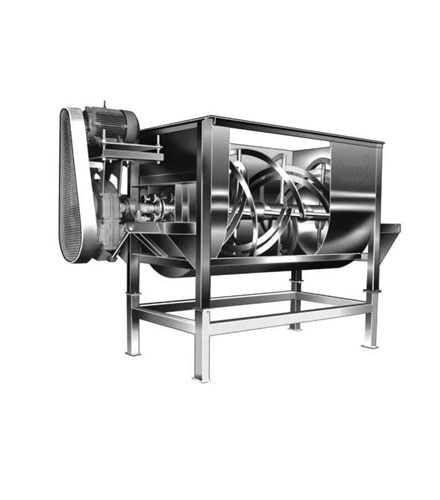

Ribbon Blender

Features

  • Suitable for dry mixing of products in granule form
  • Easy for loading & unloading of material
  • Easy for cleaning
  • All contact parts are made out of SS 316 / SS 316 L quality materiel as per customer requirements
  • Blenders range include polygonal / ribbon blender
  • Simple design requires minimum maintenance
  • All moving components are guarded suitably
  • Manual rotating facility with hand wheel for inching
  • Control panel displays the time of run & RPM of the blender & AMPS taken by the blender

Technical Specifications

  • Model :- Ribbon Blender
  • Gross Capacity :- 100L, 200L, 300L, 600L, 750L, 1000L, 1500L, 2000L, 3000L, 4000L
  • Working Capacity :- 25-50, 50-100, 75-120, 150-250, 190-300,
    250-400, 375-600, 500-800, 750-1200, 1000-1600
  • Motor HP :- 2 , 2, 3, 5, 5, 7.5, 7.5, 10, 15, 15
  • M.O.C :- Stainless
  • Gear Box :- 6/12, 6/12, 6/12, 6/12,6/12,6/12,6/12, variable,variable,variable
  • RPM :- W.C depends on products bulk density
    (2) .5 bulk density considered for W.C (3) will be provided as per customer specification
  • Designed Type :- Customized
...

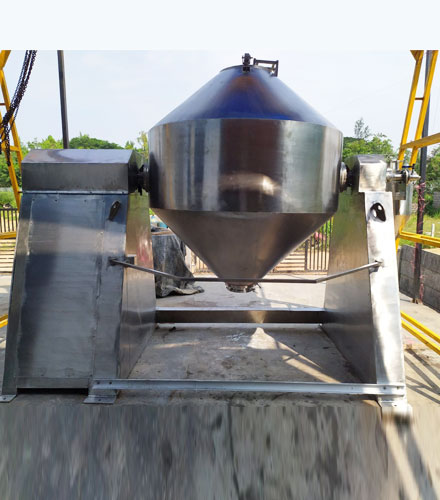

RVPD

Features

  • Very suitable for drying materials which are heat sensitive, as low temperature for drying can be maintained by high vacuum
  • Lowest energy consumption compared to any other batch type dryer due to higher differential temperatures.
  • Higher Thermal Efficiency.
  • Almost 100% recovery of solvents.
  • Heating Temp.: From 30oC to 300oC.
  • Evaporation Rate : 4.12 Kg/ HrlSq. Meter of Heating surface area of water at heating temperature of 100oC.
  • Limpet coil could be provided instead of jacket if the heating media is fluid
  • Efficient rotary joint to inject heating media into agitator and remove condensate.

Technical Specifications

  • Model :- RVPD
  • Total Volume LTS :- 500, 1000, 1500, 2000, 2500, 3000, 4000, 6000, 8000, 10000
  • Working Volume :- 250, 500, 750, 1000, 1250, 1500, 2000, 3000, 5000, 6000
  • Heating Surface Area :- 3.2, 6, 7.7, 8.7, 10, 11.6, 16.7, 17.7, 23.5, 27.3
  • P R F Agitator Motor (HP) :- 7.5, 10, 10, 15, 20, 20, 30, 40, 50, 60
  • (Dia x Length) :- 700 x 1400, 900 x 1700, 1000 x 2000, 1100 x 2100 ,
    1200 x 2250 , 1260 x 2400, 1200 x 3600, 1600 x 3000, 1600 x 4000, 1700 x 4400
  • Designed Type :- Customized
...

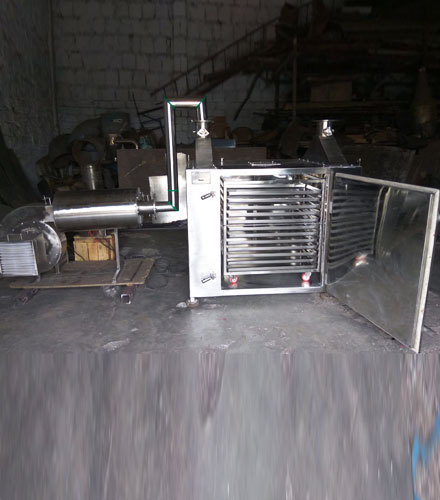

Tray Dryer

Features

  • Complies cGMP standards
  • Uniforms distribution of air & better drying efficiency
  • All contact parts are S.S.316/ S>S 316l & non-contact parts made with SS 304
  • Food Grade silicon gasket for light sealing
  • Non sparking hardware is used inside the chamber
  • Optional Non-FLP control panel & PLC with automation will be provided

Technical Specifications

  • Model :- Tray Dryer
  • Model available :- Recirculation type / Split type
  • N.O.D.O :- one
  • Electrical Heating :- 100/200/3000c
  • Motors /H.P.3 phase 415vol :- 1/0.5 H.P.3 Ph 415volts
  • S.Pressure :- 3.3 kg/cm2
  • M.O.C :- Stainless
  • Designed Type :- Customized
...

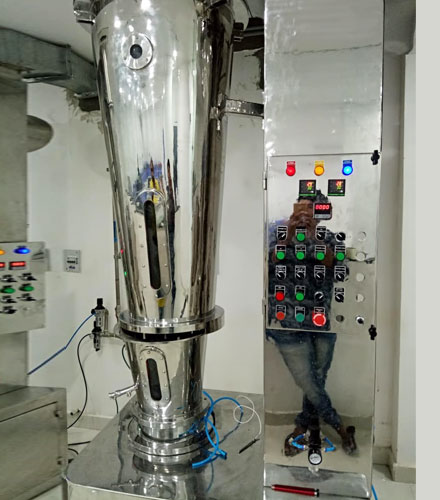

Fluid bed coater

Features

  • Complies cGMP standards
  • Maximum drying efficiency & minimum process loss
  • Uniform drying/coating online sampling device
  • Machine produces the reproduction results
  • All critical parameters are messurable and controllable
  • User friendly HMI design
  • Designed for safety of men machine and material interface

Technical Specifications

  • Model :- Fluid bed coater
  • Batch Size - Kg :- 1-2, 3-5, 5-10, 20-30, 40-60, 80-120, 140-250, 250-500
  • Blower motor hp :- 1, 2, 3, 10, 15, 25, 40, 60
  • Bowl Vol :- 5L, 10L, 15L, 60L, 120L, 250L, 500L, 1000L
  • Working Temp :- 80Deg.c To 100Deg.c
  • Compressed air :- 6 bar
  • Steam kg/hr :- Electrical, Electrical, Electrical, 25, 60, 100, 210, 320-400
  • M.O.C :- Stainless
  • Designed Type :- Customized
...

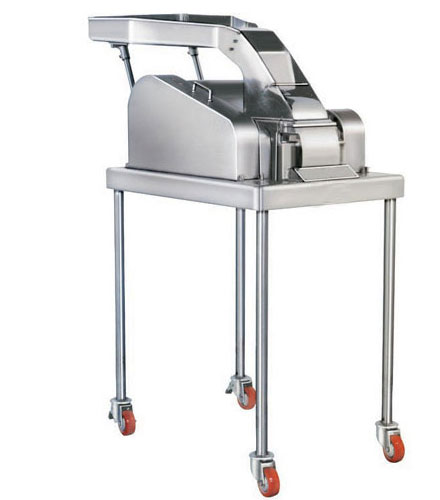

Communicating Mill

Features

  • Designed to suit high speed milling needs with plain, water jacketed & flame proof options
  • S.S 304 guards for all moving parts to meet cGMP standards
  • Products contact parts are made with SS 316 & non contact parts are made with SS 304
  • Fabricated to work long with very low heat, vibration & noise generation
  • Beater assembly bearing are housed in separate pillow blocks for ease in maintenance
  • Equipment is mounted on the castor wheels movable easily from one area to another

Technical Specifications

  • Model :- Communicating Mill
  • Rotor Speed :- 1000/2250/4500 RPM
  • Output :- 25-300 Kgs/hr
  • M.E.M :- 2 to 7.5 Hp/1440 RPM/3 ph
  • Model/type :- GM/Movable
  • M.O.C :- Stainless
  • Designed Type :- Customized
